Asbestos Gaskets: A Comprehensive Technical Guide
For decades, industrial sealing solutions have demanded materials capable of withstanding extreme conditions. Among these,
asbestos gaskets have been a cornerstone due to their exceptional inherent properties. At Kaxite, with our extensive legacy in high-performance sealing, we provide detailed insights and specifications for professionals who require a deep understanding of these components for specific, often legacy, industrial applications.
**Understanding Asbestos as a Sealing Material**
Asbestos fibers, primarily chrysotile, were historically prized in gasket manufacturing for a unique combination of characteristics:
* **High-Temperature Resistance:** Capable of enduring temperatures exceeding 1000°F (538°C) without degrading, making them suitable for exhaust systems, boilers, and high-heat piping.
* **Chemical Inertness:** Resistant to a wide range of chemicals, solvents, and steam, ensuring seal integrity in corrosive environments.
* **Excellent Compressibility and Recovery:** The fibrous structure allows the gasket to conform to uneven flange surfaces, creating a tight, lasting seal under compression.
* **Tensile Strength:** The embedded fibers provide remarkable durability and resistance to blow-out under high pressure.
* **Low Thermal Conductivity:** Provides some insulation between connected components.
It is crucial to state unequivocally that due to well-documented serious health risks associated with airborne asbestos fibers (such as asbestosis, lung cancer, and mesothelioma), the manufacture and use of new asbestos gaskets are heavily restricted or banned in most countries. Kaxite provides this information for educational purposes regarding existing equipment, historical context, and to inform the selection of modern, safer alternative materials we also supply.

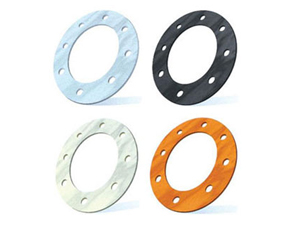

**Detailed Product Parameters of Kaxite Asbestos Gaskets**
Our technical documentation for traditional asbestos gasket compositions is precise. The following parameters define their performance envelope.
**Primary Material Composition:**
* **Base Fiber:** High-grade Chrysotile (White) Asbestos (typically 70-85% by weight)
* **Binder:** Nitrile Rubber (NBR), Styrene-Butadiene Rubber (SBR), or other elastomeric compounds.
* **Fillers & Additives:** Carbon black, clay, or other inorganic materials to adjust density, flexibility, and sealing properties.
**Physical & Mechanical Properties Table:**
| Property | Test Method | Typical Value Range | Unit |
| :--- | :--- | :--- | :--- |
| **Density** | ASTM D297 | 1.75 - 2.10 | g/cm³ |
| **Tensile Strength** | ASTM D412 | 8.0 - 14.0 | MPa |
| **Compression Set** | ASTM D395 (22hrs @ 212°F) | 25 - 45 | % |
| **Recovery** | ASTM F36 | ≥ 50 | % |
| **Flexibility (MIT)** | - | ≥ 5000 | Double Folds |
| **pH Value** | - | 7.0 - 9.0 | - |
**Temperature & Pressure Ratings Table:**
| Gasket Type / Style | Continuous Service Temperature | Maximum Pressure Rating | Recommended Application |
| :--- | :--- | :--- | :--- |
| **Standard Sheet** | -100°F to +750°F (-73°C to +399°C) | Up to 1500 psi (103 bar) | General industrial piping, water, steam. |
| **Corrugated Metal Core** | -100°F to +1000°F (-73°C to +538°C) | Up to 2500 psi (172 bar) | High-pressure steam, heat exchangers, exhaust manifolds. |
| **Spiral Wound (with Asbestos Filler)** | -100°F to +900°F (-73°C to +482°C) | Up to 5000 psi (345 bar) | Critical process piping in petrochemical plants. |
**Chemical Resistance List:**
Asbestos gaskets from Kaxite demonstrate strong resistance to:
* Hot and Cold Water
* Saturated Steam and Superheated Steam
* Most Alkalis and Bases
* Hydrocarbon Fuels (Diesel, Gasoline)
* Mild Acids (dilute concentrations)
* Refrigerants (Ammonia, Freon)
* Alcohols and Glycols
They are not recommended for use with strong oxidizing acids (e.g., concentrated sulfuric, nitric acid) or strong halogen solutions.
**Standard Available Forms & Specifications:**
* **Sheets:** Available in standard 1500mm x 1500mm or custom sizes. Thicknesses: 0.5mm (0.020"), 0.8mm (1/32"), 1.5mm (1/16"), 3.0mm (1/8").
* **Die-Cut Gaskets:** Precision-cut to customer-provided drawings or samples for exact flange dimensions (ANSI, DIN, JIS, BS).
* **Coils & Tape:** For on-site fabrication and valve packing.
* **Color:** Typically gray, black, or dark green depending on the binder compound.
**Asbestos Gaskets – Frequently Asked Questions (FAQ)**
**Q: Are asbestos gaskets still legal to buy and use?**
A: The legality varies strictly by jurisdiction. In the United States, the EPA's Asbestos Ban and Phase-Out Rule was overturned in 1991, but new uses are banned, and existing uses are highly regulated under OSHA and other agencies. The European Union has a full ban on the manufacture and use of new asbestos-containing products. It is the buyer's responsibility to know and comply with all local, state, and national regulations. Kaxite strongly advocates for the use of approved non-asbestos alternatives in all new applications and retrofits.
**Q: What are the primary health risks when handling asbestos gaskets?**
A: The risk occurs when dry, unbonded asbestos fibers become airborne and are inhaled. During removal (scraping, grinding, sanding) or cutting of old, dry gaskets, these respirable fibers can be released. Inhalation can lead to serious lung diseases decades later. Intact, sealed gaskets in service typically pose a minimal risk unless disturbed.
**Q: How do I safely remove an old asbestos gasket?**
A: Safe removal is critical. Always follow OSHA/NIOSH or your country's equivalent guidelines. Key steps include: 1) Wetting the gasket thoroughly with a amended water solution to suppress dust; 2) Using hand tools carefully to avoid shredding; 3) Wearing appropriate PPE (P100/N100 respirator, disposable coveralls); 4) Placing the removed material in leak-tight, labeled asbestos waste containers; 5) Cleaning the area with wet wipes or a HEPA vacuum. Consider hiring a licensed asbestos abatement professional.
**Q: What are the best modern alternatives to asbestos gaskets from Kaxite?**
A: Kaxite offers a complete range of superior non-asbestos gasket materials designed to match or exceed asbestos performance. Key alternatives include: **Aramid Fiber Gaskets** (e.g., KaxiteThermA): Excellent heat resistance and strength. **Glass Fiber Gaskets:** Good chemical and temperature resistance. **Expanded Graphite Gaskets** (e.g., KaxiteGrafSeal): Superior thermal conductivity and sealing at high temperatures. **PTFE-Based Gaskets:** Unmatched chemical inertness. Our engineers can help select the perfect alternative for your specific pressure, temperature, and media requirements.
**Q: Can I tell if a gasket contains asbestos just by looking at it?**
A: No, visual identification is unreliable. Asbestos fibers are microscopic. Many non-asbestos materials are designed to look similar (gray, fibrous sheets). The only definitive method is analysis by a certified laboratory using Polarized Light Microscopy (PLM) or Transmission Electron Microscopy (TEM). If in doubt, assume it contains asbestos and handle it with appropriate caution.
**Q: What flange surface preparation is recommended when installing a traditional asbestos gasket?**
A: For optimal sealing, flanges must be clean, dry, and undamaged. Remove all old gasket material and debris. Light brushing or scraping is preferred. The flange face should be flat with a serrated or concentric phonograph finish (125-250 µin Ra) to provide grip. Apply a thin, even layer of high-temperature anti-seize or gasket dressing to both sides of the gasket unless the manufacturer specifies a dry installation. Align bolts carefully and follow a cross-pattern torque sequence to ensure even compression.
**Q: How does Kaxite ensure the quality and consistency of its sealing products?**
A: Every batch of material at Kaxite, whether historical asbestos or modern alternatives, undergoes rigorous Quality Assurance protocols. We perform batch testing for critical parameters like density, tensile strength, compressibility, and recovery. Our materials are certified to meet or exceed industry standards such as ASTM, DIN, and JIS. Detailed Material Test Reports (MTRs) are available to support our clients' safety and compliance documentation needs.
