Lens Ring Joint Gasket
If you are willing to import customized and good quality high lumen Lens Ring Joint Gasket from a such manufacturer and supplier, or you are going to check CREE, EMC, CE and OEM Lens Ring Joint Gasket price and quotation with a such exporter, providing with Lens Ring Joint Gasket enquiry, welcome to contact us.
-
Double Jacket Gasket
If you are willing to import customized and good quality high lumen Double Jacket Gasket from a such manufacturer and supplier, or you are going to check CREE, EMC, CE and OEM Double Jacket Gasket price and quotation with a such exporter, providing with Double Jacket Gasket enquiry, welcome to contact us.
-
Corrugated Gaskets
If you are willing to import customized and good quality high lumen Corrugated Gaskets from a such manufacturer and supplier, or you are going to check CREE, EMC, CE and OEM Corrugated Gaskets price and quotation with a such exporter, providing with Corrugated Gaskets enquiry, welcome to contact us.
-
PTFE Envelope Gasket
If you are willing to import customized and good quality high lumen PTFE Envelope Gasket from a such manufacturer and supplier, or you are going to check CREE, EMC, CE and OEM PTFE Envelope Gasket price and quotation with a such exporter, providing with PTFE Envelope Gasket enquiry, welcome to contact us.
-
Rubber Sheet
If you are willing to import customized and good quality high lumen Rubber Sheet from a such manufacturer and supplier, or you are going to check CREE, EMC, CE and OEM Rubber Sheet price and quotation with a such exporter, providing with Rubber Sheet enquiry, welcome to contact us.

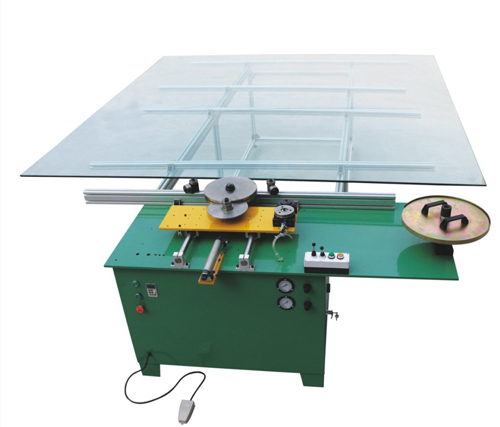

Semi-Automatic Horizontal Big Size Winder
For big size spiral wound gasket ID 300mm to 2500 or 3200mm with or without inner ring. Gasket thickness 4.5mm (also for 3.2mm, 6.4mm and 7.2mm by changing roller parts, V or W shape winding)
| Specification as following: | ||
| STYLE | KXT E2500B Manual winder | KXT E2500C Semi-automatic winder |
| Producing ability | SWG with or without IR | SWG with or without IR |
| SWG thickness | 4.5mm (also suitable for 3.2mm, 6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding for option) | 4.5mm (also suitable for 3.2mm,6.4mm and 7.2mm after changing roller parts, V shape winding or W shape winding for option) |
| Maximum gasket OD | 2500mm or 3200mm | 2500mm or 3200mm |
| Minimum gasket ID | 300mm | 300mm |
| Total power | 2.2kw | 8kw |
| Spindle motor power | 0.75kw | 0.75kw |
| welder power | / | 6kw |
| Power supply | 380V/220V for option, 3 phases | 380V/220V for option, 3 phases |
| linear speed | 0-800mm/s | 0-800mm/s |
| Air compressor | 0.6—0.8 MPA | 0.6—0.8 MPA |
| Frequency Converter | 2.2G | 2.2G |
| PLC | / | xinjie |
| Machine measurement | 3400*2600*980mm | 3400*2600*980mm |
| Machine net weight | 500kg | 550kg |
